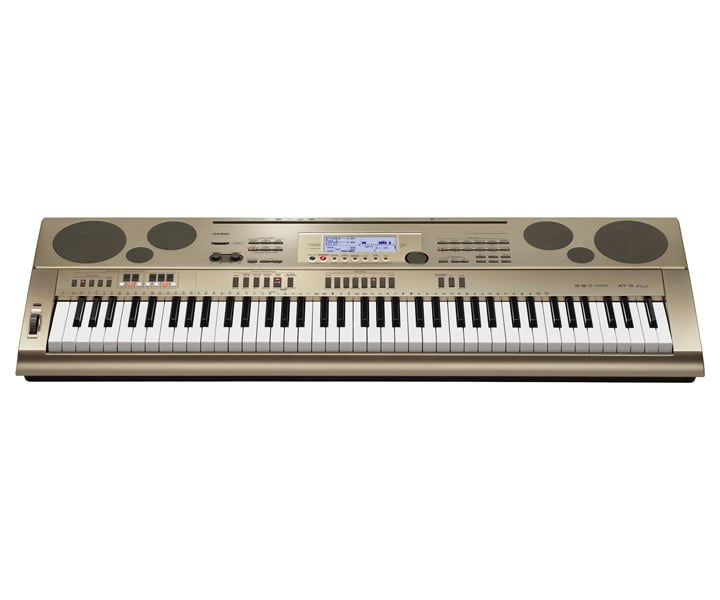

Casio AT-5-Localized Keyboards

The display screen of this exclusive localized keyboard consists of an LCD with backlight. The weight of the AT-5 is much more than AT-3 and it is about 8.9Kg, excluding its batteries that are used as a power requirement. It is also an all in one oriental keyboard that performs functions such as audio recording and playback. There are about 800 built-in tones including 54 oriental tones, featured in the 76 piano type keyboards. This makes this an amazing product for the music lovers.

Song sequencer
Pattern sequencer
Thirty two channel Mixer

Fifty four oriental tones
Oriental scale setting
Audio recording & playback

Keyboard	76 piano-type keys
Touch Response	2 sensitivity levels, Off
Sound Source	AHL (Tri-element)
Maximum Polyphony	64
Tones	800 built-in tones including 54 oriental tones (100 user tones)
Layer/Split	Layer, Split
Digital Effects	Reverb: 10types Chorus: 5 types (simultaneous use with DSP not supported.) DSP: 100 preset, 100 users (simultaneous use with Chorus not supported.)
Rhythms/Patterns	250 built-in rhythms including 83 oriental/Arabic rhythms (100 user rhythms)
Auto Accompaniment	Modes: CASIO Chord, Fingered 1, Fingered 2 (6th off), Fingered 3 (on bass), Full Range Chord Controllers: Start/Stop, Intro, Normal/Fill-in, Variation/Fill-in, Synchrony/Ending
Built-in Songs	5 (demo tunes)
Metronome	Beats: 0, 2, 3, 4, 5, 6 (Tempo range: quarter note = 30 to 255)
Recorder	Song sequencer: 16 multi tracks + 1 System Track, 5 songs, approximately 30,000 total notes (real-time recording, step recording, song edit, track edit, event edit, punch-in/out)
Other Functions	Audio recording/playback: 5 files maximum (Approximately 13 minutes of recording per file) Mixer: 32 channels + EXT IN (INST IN, MIC IN), 9-slider operation Pattern sequencer: real-time recording, step recording, quantize, Easy Edit, Event Editor, part parameters (100 user rhythms) Tone editor (100 user tones) Registrations: 96 setups (6 sets x 16 banks) Music preset: 305 preset with chord progression, chord edit (100 user presets) One-touch preset: 250 presets Auto harmonize: 12 types Arpeggiator: 150 types Octave shift: ±2 octaves Rhythm/song controller Pitch bend wheel : 0 to 24 semitones Modulation button Dial Oriental scale: Scale fine tune ±99 cents, 17 preset scales, 4 scale memory Oriental scale setting
Key Transpose	25 steps (-12 to +12 semitones)
Tuning Control	A4 = 415.5 – 440.0 – 465.9 Hz
Display Screen	LCD with backlight
SD Memory Card Slot	Supported memory cards: From 2GB up to 32GB SD memory cards or SDHC memory cards Functions: SMF playback (up to 320KB per file), file save/load/delete, card format Save/load: Registrations, user rhythms, user tones, scale memory data, user DSPs, user music presets, song sequencer songs, audio recording files
MIDI	GM Compatibility: Level1 Terminals: USB
Speakers	12cm x 2 + 3cm x 2, bass-reflex system, speaker on/off
Amp Output	7W + 7W
Input/output Terminals	Mic in Inst in Audio in Line output (L/MONO, R) Headphones (standard stereo jack) Sustain/assignable USB: type B External power (12V DC) USB cable (A-B type) required to use USB terminal for computer connection.
Power Requirements	Batteries: D-sizex6/AC adaptor: AD-A12150LW
Included Accessories	Music stand, AC adaptor
EAN code	4971850313861

Dimensions (W x D x H)	1187 x 399 x 149 mm Excluding music stand, and other projections
Weight	8.9 kg (Excluding batteries)
